{Description}
Table Duct Bulkhead Tank Connector Fittings complete with clamping nut designed to fit pipework to tanks and other watertight plumbing connections
- All Fastlight PVC-U pipe and fittings are high quality, approved by the Water Regulations Advisory Scheme and fully reef safe
- All pipe and fittings are metric and compatible with many other makes of metric pipe
- Supplied complete with one rubber, one nylon washer and an EDPM compression gland seal
- These Bulkheads - Tank Connectors are sized so the correct pipe fits 'inside' of the fitting and is clamped with the gland. The pipe can slide through the complete fitting to exit the other end if so required
{Technical}
Pressure: 10 Bar - 145 psi
Connection: Compression Gland
Material: PVC-U
Colour: Grey

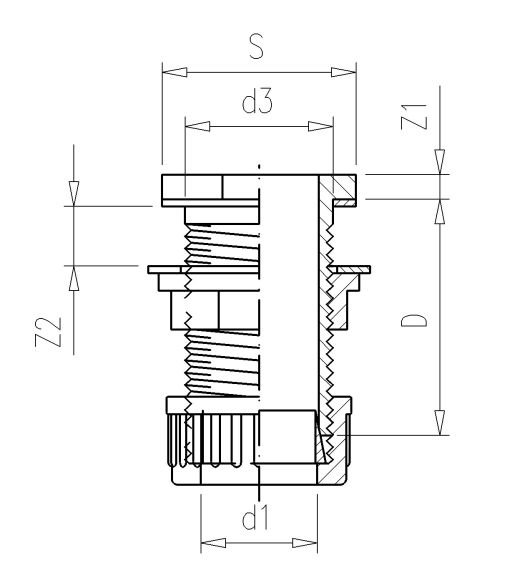

Dimensions:
20mm d1=20mm, d3= 27mm, Z1=8mm, Z2=0-25mm, D=56mm, S=32mm
25mm d1=25mm, d3= 34mm, Z1=10mm, Z2=0-25mm, D=60mm, S=40mm
32mm d1=32mm, d3= 42mm, Z1=7mm, Z2=0-25mm, D=66mm, S=55mm
40mm d1=40mm, d3= 54mm, Z1=7mm, Z2=0-25mm, D=78mm, S=74mm
50mm d1=50mm, d3= 59mm, Z1=9mm, Z2=0-30mm, D=84mm, S=78mm
63mm d1=63mm, d3= 76mm, Z1=9mm, Z2=0-30mm, D=90mm, S=100mm
{Availability}
In stock for next working day delivery
