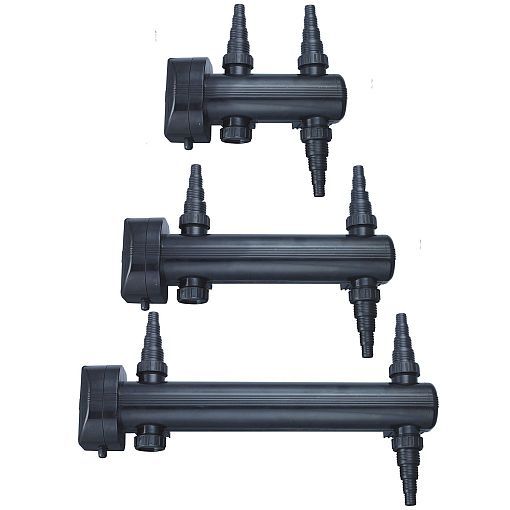

Jebao 2021 CW UVC Water Clarifiers CW 9 11 18 36 & 55

{Description}
The 2025 Jebao CW Ultra Violet Clarifier (UVC) 9w, 11w, 18w, 36w & 55w. UK Next Working Day Supply & Warranty

• The UVC Clarifier continues to form a key element of any pond keepers system in removing

• The algae, causing green water, are made to clump together (flocculate) by the UV (ultra violet) light so that they can be sieved out of the water by a filter to provide clear water

• The UV clarifier effectively eliminates algae and pathogens as well as harmful bacteria through this ultra violet light

• The Jebao UV 'CW' Clarifier is designed to be used with an existing pond filtration system, which includes a mechanical and biological filter and filter pump

• This clarifier unit is weatherproof but not waterproof and must not be submerged in water

• To prevent algae growth and green water this clarifier should be run for 24 hours a day during the summer season, and can be positioned before or after the filtration system and must be pumped through the unit and not gravity fed

• Each model available has a visual function indicator, and comes supplied and fitted with the UV lamp/bulb

{Which one to use?}
What sized UVC should I use?

• A general rule of thumb is about 5w (per 500 gallons) in a shaded pond with very few fish, and about 10w (per 500 gallons) in a pond with full sun or more heavily stocked

• You should always purchase a bigger size whenever you are unsure, as buying one too small will struggle to clear your water
{Features}
Jebao CW Clarifier Features:

• Inlet - Outlet Hosetail sizes: 20mm, 25mm, 32mm & 40mm
• Low running costs
• Visual function indicator
• Supplied with approx 5 meters of rubberised cable, no plug is fitted due to current UK electrical regulations
• Supplied with the relevant sized UVC lamp and easy to clean quartz glass


{Technical}
Technical:

CW9 UVC Clarifier:
Capacity: 9 Litres
Pond Water Volume: 4.5 m3
Hosetail Sizes: 20mm, 25mm, 32mm & 40mm
Supply Voltage: 220-240v 50Hz - 120v 60Hz
Dimensions: 322mm Long x 350mm Wide x 132mm High
CW11 UVC Clarifier:
Capacity: 11 Litres
Pond Water Volume: 5.5 m3
Hosetail Sizes: 20mm, 25mm, 32mm & 40mm
Supply Voltage: 220-240v 50Hz - 120v 60Hz
Dimensions: 322mm Long x 350mm Wide x 132mm High

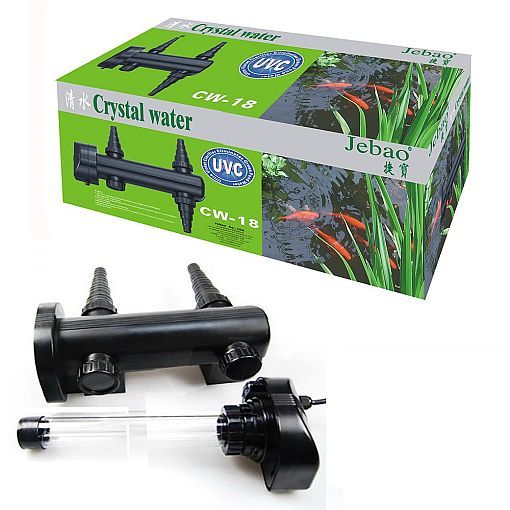

CW18 UVC Clarifier:
Capacity: 18 Litres
Pond Water Volume: 8.0 m3
Hosetail Sizes: 20mm, 25mm, 32mm & 40mm
Supply Voltage: 220-240v 50Hz - 120v 60Hz
Dimensions: 322mm Long x 350mm Wide x 132mm High

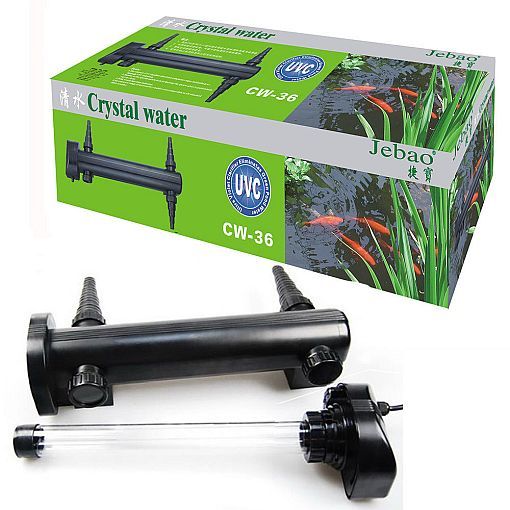

CW36 UVC Clarifier:
Capacity: 36 Litres
Pond Water Volume: 18 m3
Hosetail Sizes: 20mm, 25mm, 32mm & 40mm
Supply Voltage: 220-240v 50Hz - 120v 60Hz
Dimensions: 525mm Long x 350mm Wide x 132mm High

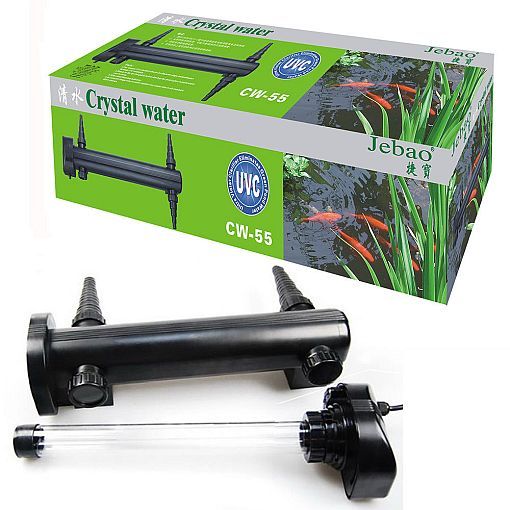

CW55 UVC Clarifier:
Capacity: 55 Litres
Pond Water Volume: 25 m3
Hosetail Sizes: 20mm, 25mm, 32mm & 40mm
Supply Voltage: 220-240v 50Hz - 120v 60Hz
Dimensions: 645mm Long x 350mm Wide x 132mm High
{Availability}
In stock for next working day delivery
